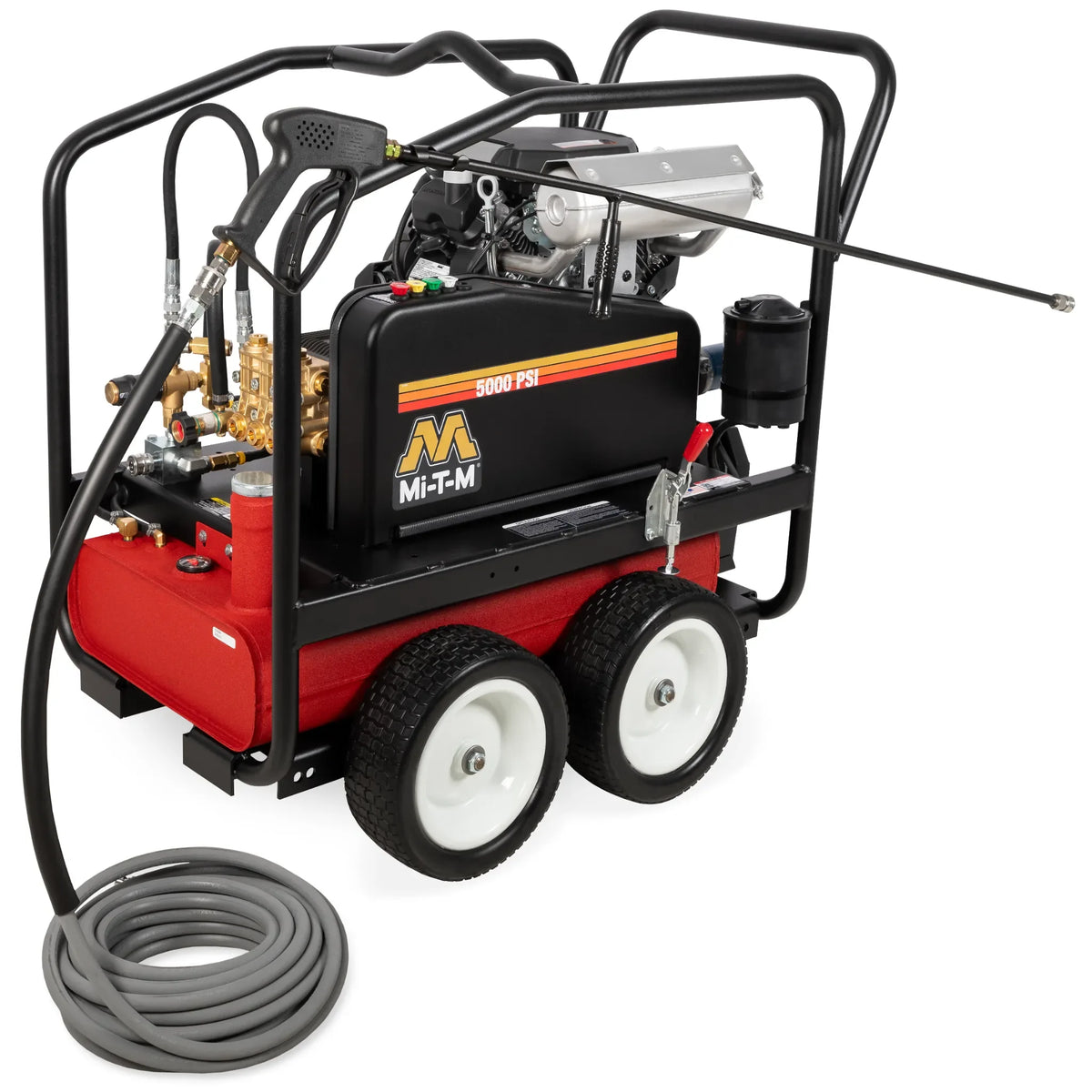

Mi-T-M CWC-5004-4MAH Belt Drive Pressure Washer – 5000 PSI, Honda GX630
The Mi-T-M CWC-5004-4MAH delivers 5,000 PSI at 4.0 GPM via a 688cc Honda GX630 OHV engine and an AR triplex pump. The CWC roll-cage frame is powder-coated steel with an integrated lifting hook. Electric start with sealed battery. 13-gallon fuel tank for up to 9.5 hours runtime. Weight: 433 lbs. Factory-preset unloader. 49-state compliant; not for sale in California.
CWC-5004-4MAH Honda GX630 and AR Pump Configuration
- Pressure: 5,000 PSI
- Flow rate: 4.0 GPM
- Engine: 688cc Honda GX630 OHV, electric start, sealed battery
- Pump: AR triplex with external bypass, forged brass manifold, thermal and safety relief valves, clear-sleeve water filter
- Unloader: Factory preset
- Fuel tank: 13 gallon (up to 9.5 hr)
- Lance: 48 in.
- Hose: 50 ft × 3/8"
- Tires: 13" flat-free with locking brake
- Frame: Powder-coated steel roll cage with lifting hook
Industrial High-PSI Applications for the CWC-5004
At 5,000 PSI, the CWC-5004-4MAH is appropriate for concrete surface preparation, industrial paint stripping, and removal of hardened scale deposits that require pressures above the 4,000 PSI CBA series limit. The Honda GX630 is the same engine used across all Honda-powered CWC-5004 and CWC-6004/7004 variants, providing consistent service channel access. The AR pump offers a proven alternative to General pump for buyers with established AR service relationships.
Frame and Extended Runtime
The roll cage frame with lifting hook enables crane or forklift positioning for semi-permanent installations. Optional CX-0118 skid feet available at order time for stationary use. Net weight: 433 lbs. Dimensions: 43" × 27.75" × 38.5".
| Model | CWC-5004-4MAH |
| PSI | 5,000 |
| GPM | 4.0 |
| Engine | 688cc Honda GX630 OHV, electric start |
| Pump | AR |
| Unloader | Factory Preset |
| Fuel Tank | 13 gallon (~9.5 hr) |
| Hose | 50 ft × 3/8" |
| Lance | 48 in. |
| Dimensions | 43" × 27.75" × 38.5" |
| Net Weight | 433 lbs |
Documents: Spec Sheet · Manual
